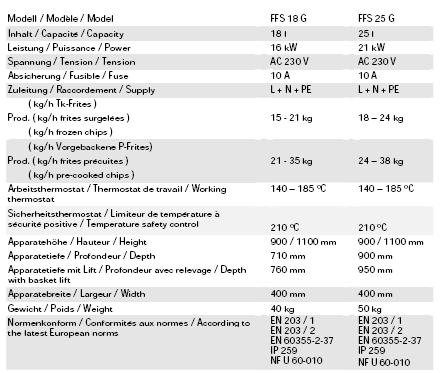

Models
Modèles
Models |
FFS 18G |
FFS 25G |
Hauteur / Height / Höhe |
900 mm |
900 mm |
Largeur / Width / Breite |
400 mm |
400 mm |
Profondeur / Depth / Tiefe |
710 mm |
900 mm |
Poids / Weight / Gewicht |
40 kg |
50 kg |
Puissance / Power / Leistung |
16 kW |
21 kW |
Capacité cuve / Fat capacity / Fettinhalt |
18 lt |
25 lt |
Capacité panier / Capacity of basket /
Korbinhalt |
0.8 kg |
1.25 kg |
Dimensions paniers / Basket dimensions /
Korbmass |
2 x 240x130x130 |
2 x 430x130x130 |
Electricité / Voltage / El. Anschluss |
AC 230 V ( L+N+PE ) |
AC 230 V ( L+N+PE ) |
Habillage / Construction / Konstruktion |
Acier inoxydable 18/10
Stainless steel 18/10
Chromnickelstahl 18/10 |
|
Collecteur / Collector / Kollektor |
Emaillé
Enamelled
Emailliert |
|
Gaz |
Allumage par train d’étincelles
Automatic electric ignition
Start durch elektrischen Zündfunken |
|
|
Détection de flamme par thermocouple
Flame failure control by thermocouple
Flammenkontrolle durch
Thermoelement |
|
Thermostat de travail / Working thermostat /
Arbeitsthermostat |
140 à 185 ºC |
140 à 185 ºC |
Limiteur de température à sécurité positive /
Temperature safety control / Positiver Sicherheitsthermostat |
210 ºC |
210 ºC |
Conformités aux normes
According to the latest European norms
Normenkonform |
EN 203 / 1
EN 203 / 2
EN 60355-2-37 (Indice de classement C 73-836)
IP 259
NF U 60-010 |
|
